We offer a wide range of OEM screens and monitors, whith housing or not, allowing most industrial or medical projects to be addressed according to their technical requirements but also the constraints of life cycle management, with a focus on sustainability and precise management of the end of life. Indeed, the availability of screens on the market is usually five years: We announce the end of life in advance and can set up scheduled deliveries up to two years after the EOL announcement. Of course, we also offer alternative products where possible.

Several hundred different configurations are available and we also respond to customization requests.  You can choose the mechanics, size, resolution and screen type ratio, video and audio inputs, and specify the necessary additional features such as brightness level, anti-glare, screen protection or surface processing or any other specific need as power LED color or position, power supply voltage,...

Please use the configurator below to specify your need, multiple choices are possible and you can also describe your own customization needs. We will offer you a monitor as close as possible to your specifications.

Conventional screens offer video inputs compatible with standard PCs, usually VGA, DVI, Display Port or HDMI.

Industrial monitors offer additional inputs, such as SDI (3G-SDI, HD-SDI, SD-SDI), AHD, TVI and even CVBS composite video (PAL/ NTSC).

These signals are often provided directly by cameras to minimize latency and most of the time, a loop still transmits them for further processing to a FPGA, computer or DVR.

Specific inputs are also possible, such as Ethernet, which allows video signals from multiple IP cameras to be displayed directly, without using a PC. These industrial monitors can even be powered by PoE (Power over Ethernet). This solution is also used in Point of Sale applications to stream videos from a central system over a long distance and without the use of additional PCs next to monitors.

The requirements of robustness and life time can often be supported by the addition of a protective glass and the use of a metal frame, but this greatly weighs down the monitor. Also, when weight is a critical point, we offer specific hardening solutions such as chemical screen processing.




moniteur av bnc

moniteur av bnc

Example of industriaL or Medical monitors

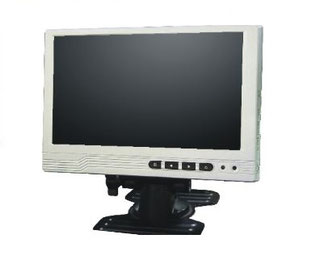

7" Professional cvbs Monitor

ecran PAL NTSC
LCD panel : 7“

Active area (mm) : 154x86

Picture format : 16 : 9

Max. resolution : 800 x3 (RBD) x 480

Color:  16,7M

Brightness:  400 nit

Contrast : 500:1

Response time (Tr/Tf) : 16ms

View angle : (U/D/L/R) : 50/70/70/70

Dimensions (WxHxD) mm : 180 x120 x 23

Weight : 0,478 kg

Operating temperature -10° to 60° C

moniteur CVBS
connectique ecran analogique
moniteur av bnc

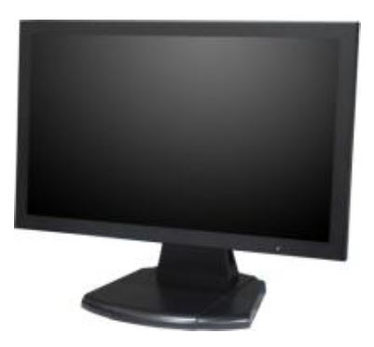

15.6" Professional CVBS SDI Module (LED B/L)

ecran entrée SDI
LCD panel : 15,6“

Active area (pixel) : 1920x1080

Picture format : 16 : 9

Max. resolution : 800 x3 (RBD) x 480

Color:  True 10 bits Color processing engine

Brightness:  1000 nit

Contrast : 800:1

Supports HDMI/DVI/CVB S and SDI Input

Protective Glass : One side glare and another side non-glare, 3mm thickness

1CH SDI I/O; 1CH Full HD(HDMI); 1CH DVI IN; 1CH USB; 1CH VGA IN, 1CH Y/C IN, 2CH VIDEO IN/OUT; 2CH AUDIO IN/OUT; 1CH PC Audio IN, Aluminum frame / Metal case; 100/75 VESA; DC12V



moniteur av bnc

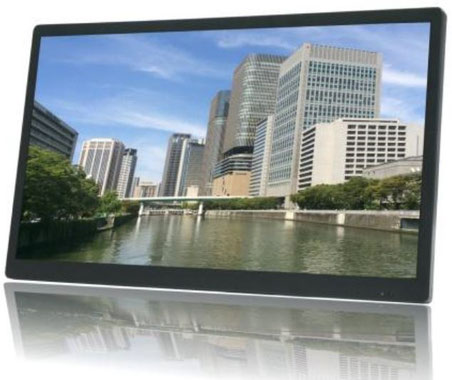

Professional 23,8" 4K UHD TFT Monitor

écran 4k Ultra HD
LCD panel : 23.8“

Active area (mm) : 527.04x296.46

Picture format : 16 : 9

Max. resolution : 3840x2160

Pixel pitch (mm) : 0.1725x0.1725

Color:  1.07G colors

Brightness:  300 cd/m² [LED]

Contrast : 1000:1

Response time (Tr/Tf) : 14ms (G to G)

View angle : (U/D/L/R) 89/89/89/89

Power input : AC 100-240V 50/60Hz, Adapter DC 12V/5A

Power consumption : Approx. 36 watt

Dimensions (WxHxD) : mm 555.6x341.0x73.5

Weight 5.2 kg

Operating temperature 0° to 50° C


fonctions moniteur 4k
connectique ecran 4k


moniteur av bnc

21.5" Professional IP H.264 Monitor

ecran entrée IP H264
LCD panel : 21,5“

Active area (mm) : 476.6 x 268.1

Picture format : 16 : 9

Max. resolution : 1920 x 1080

Color:  T16.7M

Brightness:  250 cd/m² (LED)

Contrast : 3000:1

Response time (Tr/Tf) : 1.3/3.7ms

View angle (U/D/L/R) : 89/89/89/89

1x RJ45 10m/100m; 2x USB2.0, 1x e-SATA; 1x VGA in; 1x DVI-D in, 2x RCA (R/L) in

Power : approx 24W

moniteur av bnc

ConfiguratOR

Note : veuillez remplir les champs marqués d'un *.

Please fill in all fields marked with *
